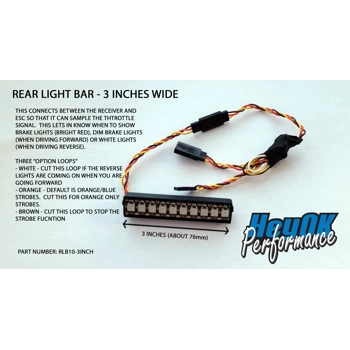

Rear Light Bar (KOH Style) 3 inches wide

RC Light Bar with Smart Throttle-Sensing Controller

This intelligent light bar adds realistic lighting behavior to your RC vehicle by monitoring the throttle signal. It automatically activates **brake lights** and **reverse lights** based on your driving direction—no extra channels required. While driving forward, the brake lights dim to simulate tail lights for a more scale-accurate look.

> **Important:** Your ESC must be set to **crawler reverse mode** (also called **instant reverse**) for proper light behavior. Without this setting, the controller may not detect direction changes correctly.

#### ⚙️ Features & Setup:
- **Plug-and-Play Throttle Detection:** Just connect to your throttle channel—no programming or extra inputs needed.
- **Wide Voltage Range:** Operates reliably from **5V to 20V**, compatible with most RC receivers.
- **Realistic Light Behavior:**
- Brake lights brighten when stopping or slowing down.
- Dim tail light effect when driving forward.
- Reverse lights activate only when backing up.

#### Three Easy “Option Loops” for Customization:
- **WHITE Loop:** Cut this if your **reverse lights come on while driving forward**—fixes throttle polarity without reversing your motor.
- **ORANGE Loop:** Default is **orange/blue strobes**. Cut this to switch to **orange-only strobes**.
- **BROWN Loop:** Cut this to **disable the strobe function entirely**.

Perfect for trail trucks, scale rigs, or any RC build where you want lights that respond intuitively to your driving.

Here's a short video showing the light controller:

https://youtu.be/kjQs7sm-XEU
