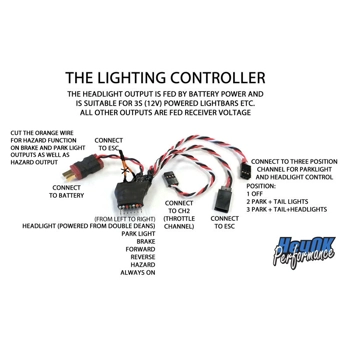

The Lighting Controller

** NOTE: Changed the internal software so that the park light and brake light outputs flash with the hazard output, but this is an option that you can set yourself. The orange loop of wire is the secret. Leave the loop connected and you only have hazard function on the hazard output. Cut the orange loop and the brake and park lights will flash along with the hazard output.


Think of it as the All Inclusive Lighting Controller


If your rig needs lighting, this controller should have you covered.

** Please note that it is meant to work with the "instant-reverse" type of ESCs, not the "double-pump reverse" ESCs. **

The Headlight output is switched battery voltage, not receiver voltage. This means that if your rig runs on 3S (let's call it 12 volts), you have 12 volts available to run your light bar.

The other outputs are receiver voltage.

This controller connects into your electrical system in a few places. It gets power by connecting between the battery and ESC and uses this for the headlight output.
It connects between the receiver and ESC in order to monitor the throttle signal so that it knows when to turn on the brake lights and reverse lights and the driving lights (called FORWARD in the picture).
It connects to a three position channel that is used like this:
Position 1: Park lights OFF, Head lights OFF
Position 2: Park lights ON, Head lights OFF
Position 3: Park lights ON, Head lights ON

Note that whenever the park lights are on, it also activates the brake/tail lights, such that whenever the brakes aren't on, they glow dimly, just like tail lights.

There is an output for hazard lights. These come on when the brake lights have been on for 30 seconds or more and turn off when you turn off the brake lights by giving either forward or reverse throttle.

The outputs are on pins that are compatible with servo plugs.

Each output is able to provide 350mA of current. The Headlight output can provide 5 amps of current.
Code: TLC
Price:
$55.00 inc. tax
